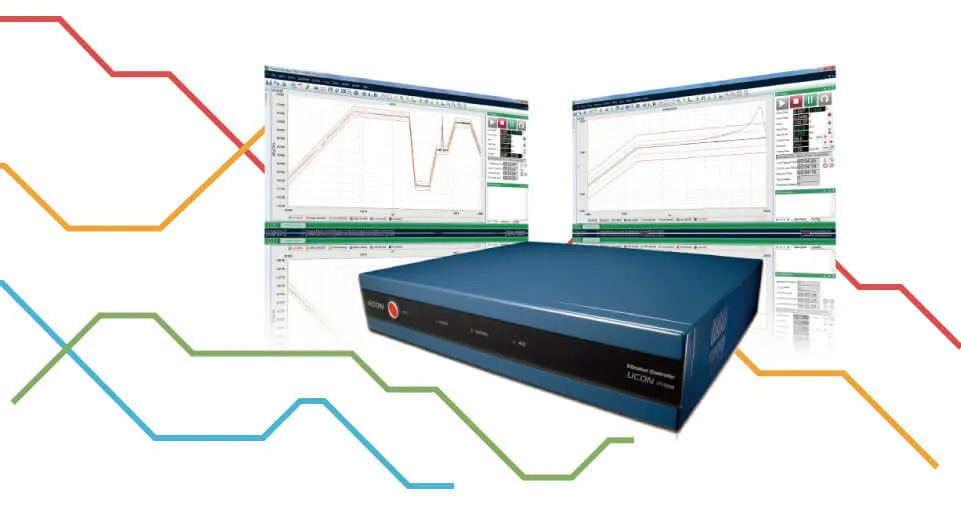

UCON Series Vibration Controller
UCON series vibration controllers are the best choice one can offer, if you are looking for a vibration controller for your new shaker, or changing your old existing vibration controller. The controllers enable to conduct all vibration testings easily and efficiently, and cost-effectively.

Ucon Series Vibration Controllers
UCON is a cutting-edge vibration controller for electro-dynamic and servo-hydraulic shakers, utilizing the latest DSP technology, low noise hardware design, advanced vibration control algorithms and data transmission protocols. UCON is also a multi-tasking system with close- loop control handled by a DSP processor. The control is independent of PC in order to ensure the efficiency of real-time control system with timely and rapid response to system dynamic changes. Thus it guarantees high performance, powerful features, and safety assurance of the control system. It also provides test engineers an easy-to-use application software interface.

UCON vibration controller is working with dedicated software options, supporting full range of shaker control applications.

These software options are sophisticatedly designed based on latest research and study of vibration control theories and algorithms, with fully consideration of engineers operating habit, easy to use.

Full Range of Control Application
  • Random Control.
  • Mixed mode random Control (SoR, RoR, SRoR).
  • Kurtosis Control.
  • Sine Control (fix, step, swept).
  • Resonance Search, Track & Dwell (RSTD).
  • Multi-Sine.
  • Classic Shock Control.
  • Shock Response Spectrum (SRS).
  • Transient Time History Control (FDR-TTH).
  • Road Simulation Control (FDR-LTH).
  • THD detection.
  • Vibro-shock Control

  • PC Independent.
  • 1 to 16 input channels.
  • 24-bit ADC/DAC resolution.
  • Built-in IEPE constant power supply and charge amplifier.
  • 32-bit floating-point DSP with 300 MHz computation.
  • Voltage, IEPE, Charge, TEDS direct coupling.
  • Dynamic range> 120dB.
  • Control dynamic range> 90dB.
  • Full range of control application.
  • 0.01 to 10,000 Hz sine control range.
  • DC to 20,000 Hz random control range.
  • Up to 6,400 lines random resolution.
  • 10-6 Hz sine frequency resolution.
  • Ethernet connectivity

Enhanced Sensor Compatibility
UCON vibration controller support direct connectivity with Voltage and IEPE mode, Charge mode and TEDS mode accelerometers based on built-in IEPE constant power supply and Charge Amplifier. Especially, the compatibility of direct charge mode sensor could assure users a wide range of choices of charge output mode sensors without extra investment of charge amplifiers.

All Kind of vibration tests
  • ITS
  • Classical Shock
  • Random.
  • Resonance Search, Track & Dwell (RSTD).
  • Sine on Random (SoR).
  • Random on Random (RoR).
  • Sine Random on Random (SRoR).
  • Shock Response Spectrum.
  • Road Simulation Control (FDR-LTH).
  • Transient Time History Control(FDR-TTH).
