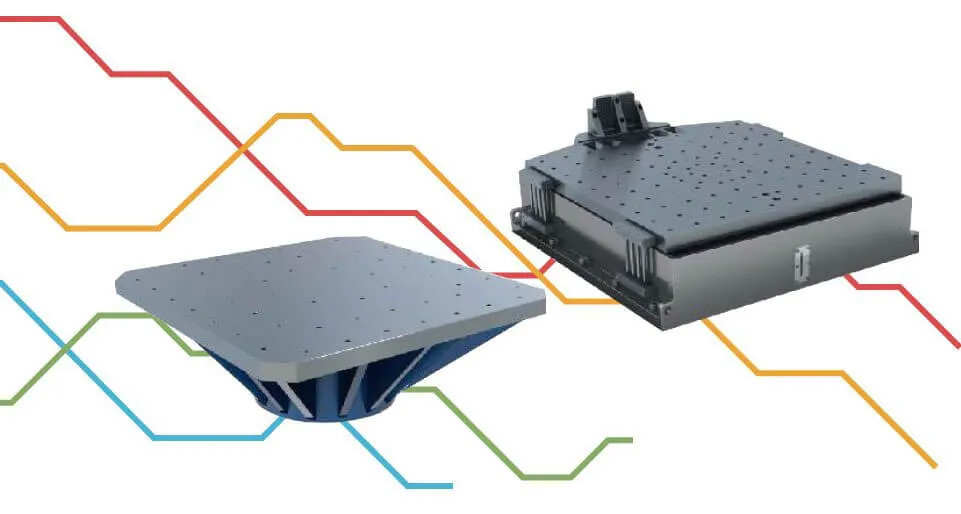

Econ offers a wide range of head expanders and slip tables in both Metric and English units. Head expanders and slip tables increase the mounting area for attaching fixtures and products and accommodate larger payloads. They can be made from either Magnesium or Aluminum and the processing methods can be either cast or machined.
Monobase Slip Table 100mm to 2500mm
For VE/EDS/EDM/EDL Series
Slip table is an often-use test platform in combined working with shaker. ECON is supplying different size of slip
table for VE/EDS/EDM/EDL series shakers, from mini size 100mm to large size 2500mm. The material of slip
plate is optional Magnesium or Aluminum as per request.
Shaker rotation mechanism (SRM) is equipped for slip tables by using motor-driven mechanism, to rotate shaker
to work in X/Y direction for horizontal vibration testing (if we regard vertical vibration as in Z direction).
Model Selection
Slip Table Modal |
Dimension (mm) |
Thickness (mm) |
Compliant with Shaker Model |
ST-100 |
100x100 |
20 |
VE-5102 |
ST-150 |
150x150 |
20 |
VE-5110 |
ST-200 |
200x200 |
20 |
VE-5120 |
ST-250 |
250x250 |
20 |
VE-5150/51100 |
ST-300 |
300x300 |
25 |
VE-51100, EDS-300 |
|
400x400 |
25 |
EDS-300 / 600, EDM-1000
|
ST-500
|
500x500 |
40 |
EDS-300 / 600,
EDM-1000 / 2000 / 3200(LS)
|
ST-600
|
600x600 |
40 |
EDS-600,
EDM-1000 / 2000 / 3200(LS) / 4000 / 5000(LS) / 6000
|
ST-800
|
800x800 |
40 |
EDM-1000 |
ST-800 |
800x800 |
50
|
EDM-2000 / 3200(LS) / 4000 / 5000(LS) / 6000
EDL-8000 / 10000
|
ST-1000
|
1000x1000 |
50 |
EDM-2000 / 3200(LS) / 4000 / 5000(LS) / 6000
EDL-8000 / 10000 / 12000
|
ST-1200
|
1200x1200 |
50 |
EDM-4000 / 5000(LS) / 6000
EDL-8000 / 10000 / 12000
|
ST-1500
|
1500x1500 |
50 |
EDM-5000(LS) / 6000
EDL-8000 / 10000 / 12000 / 16000 / 18000 / 20000
|
ST-1800 |
1800x1800 |
60 |
EDL-10000 / 12000 / 16000 / 18000 / 20000 |
ST-2000 |
2000x2000 |
60 |
EDL-10000 /12000 / 16000 / 18000 / 20000 |
ST-2500 |
2500x2500 |
60 |
EDL-16000 / 18000 / 20000 |
* For detailed technical information, please see product datasheets.
Monobase Slip Table
Monobase slip tables share one common frame
with shaker. This design can supply precise
alignment working and easy-to-use coupling
between slip tables and the shaker.
Oil-film Guidance
Oil-film guidance based slip table is cost-effective
solution for general purpose X/Y direction vibration
testing, with Magnesium or Aluminum plate sliding
on V-groove Bearings.
Oil-film guidance slip table is most often selected for
horizontal vibration testing by working with air
cooled shakers.
Hydrostatic Guidance
Hydrostatic guidance based slip table is designed
based on specific T-groove Bearings, which can
generate high yaw, roll and pitch over-turning
moments. Hydrostatic guidance based slip table is
especially used for horizontal vibration testing
where the DUT (device under test) is very heavy or
has high center of gravity.
Head Expander 200mm to 2500mm
HE Series
Head expander is rather useful in cases that shaker armature square is not enough to mount large dimension specimen, or more
specimens need to be tested at once to save test time.
ECON is supplying customer series of head expanders made by lightweight Magnesium alloy with higher strength-to-weight ratio,
and by aluminum alloy with higher cost efficiency.
Model Selection
Head Expander |
Φ150 |
Φ200 |
Φ240 |
Φ320 |
Φ445 |
Φ480 |
Φ550 |
Φ650 |
HE-300 |
7 |
2000 |
10 |
2000 |
|
|
|
|
|
|
|
|
|
|
|
|
HE-400 |
12 |
2000 |
14 |
2000 |
20 |
2000 |
|
|
|
|
|
|
|
|
|
|
5.5 |
1800 |
7.5 |
2000 |
11 |
2000 |
|
|
|
|
|
|
|
|
|
|
HE-500 |
20 |
2000 |
20 |
2000 |
30 |
2000 |
35 |
2000 |
32 |
2000 |
32 |
2000 |
|
|
|
|
|
|
10 |
1800 |
18 |
2000 |
20 |
2000 |
|
|
|
|
|
|
|
|
HE-600 |
28 |
1400 |
35 |
1500 |
30 |
1500 |
45 |
2000 |
80 |
2000 |
80 |
2000 |
|
|
|
|
|
|
22 |
1400 |
16 |
1200 |
30 |
1700 |
|
|
|
|
|
|
|
|
HE-700 |
|
|
|
|
45 |
1000 |
70 |
2000 |
85 |
2000 |
|
|
|
|
|
|
|
|
|
|
29 |
900 |
|
|
|
|
|
|
|
|
|
|
HE-800 |
|
|
|
|
80 |
800 |
80 |
1300 |
100 |
1300 |
100 |
1300 |
120 |
1300 |
|
|
|
|
|
|
|
|
42 |
1000 |
65 |
1200 |
65 |
1200 |
|
|
|
|
HE-1000 |
|
|
|
|
|
|
110 |
1200 |
160 |
1000 |
160 |
1000 |
220 |
900 |
220 |
900 |
|
|
|
|
|
|
|
|
105 |
900 |
105 |
900 |
|
|
|
|
HE-1200 |
|
|
|
|
|
|
|
|
280 |
500 |
280 |
500 |
280 |
500 |
300 |
450 |
|
|
|
|
|
|
130 |
400 |
180 |
700 |
180 |
700 |
|
|
|
|
HE-1500 |
|
400 |
400 |
400 |
400 |
425 |
400 |
425 |
400 |
|
260 |
400 |
|
|
300 |
400 |
340 |
400 |
HE-1800 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
850 |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
550 |
300 |
HE-2000 |
|
|
|
|
|
|
|
|
|
|
900 |
300 |
900 |
300 |
910 |
300 |
|
|
|
|
|
|
|
|
460 |
400 |
430 |
400 |
|
|
620 |
300 |
HE-2500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1200 |
200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
840 |
200 |
*More size options are available for HE series expanders. The actual weight and frequency will differ as per designed upon request.
FEA and EMA Test Passed

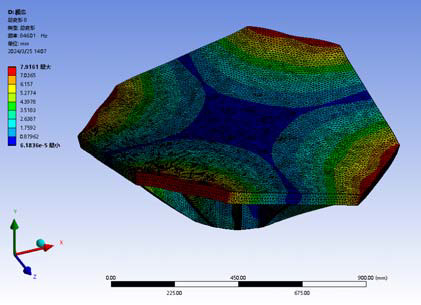

ll ECON head expanders have excellent dynamic
performances
after test of FEA (Finite Element Analysis)
and EMA (Experimental Modal Analysis)
